Cryogenic Valve Design Part Numbering
Cryocomp offers custom cryogenic valve design and fabrication services. See the many options below. Select the options best for your cryogenic containment and transfer needs and contact us.
Not sure which option best fits your application? If so, see “How to Specify a Cryogenic Valve” to get more information about selecting the ideal cryogenic flow valve.
Visit this page for drawings of design options for cryogenic valves.
If you have any questions, contact sales@cryocomp.com or call 1 908.686.3643
A breakdown of our part numbering system for cryogenic valves:
“C+design series+size+body shape+(connections)-operation+purge port+ jacket+other feature”
C2041(P)-M21A

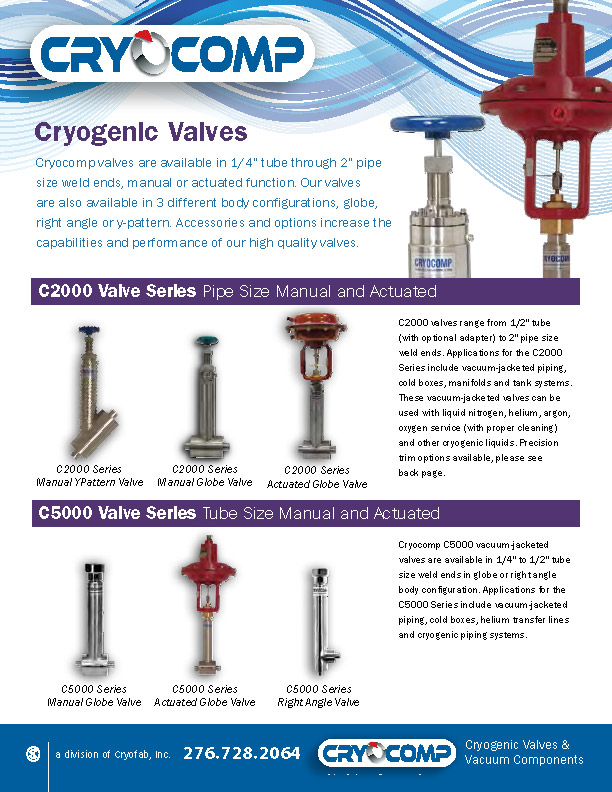

DESIGN SERIES
- C2000 Series = 2
- C3000 Series = 3
- C5000 Series = 5
SIZE (1/8″)
- 1/4″ (2/8) = 02
- 3/8″ (3/8) = 03
- 1/2″ (4/8) = 04
- 1″ (8/8) = 08
- 1-1⁄2″ (12/8) = 12
- 2″ (16/8) = 16
BODY
- Globe = 1
- Right Angle = 2
- Y-Pattern = 3*
- (Butt Weld Ends)
- *For C3000 or C5000 Y-Pattern valves, consult factory.
SPECIAL CONNECTIONS
- MPT = P
- FPT = F
- Tube = T
- AN Male = A
- Butt Weld Tube = M
- Socket Weld Pipe = S
- Soc Weld Tube = B
- Soc Solder Copper = C
- Flare Tube and Nut = N
OPERATION
- Manual = M
- Actuated/Pneumo/NC = A
- Actuated/Pneumo/NO = B
- Actuated/Pneumo/Special = C
- Actuated Valve Assembly without Actuator = D
- Actuator with Solenoid = E
- Actuator with Solenoid and Filter/Regulator = F
PURGE PORT
- No Port = 1
- Port with Pipe Plug = 2
- Port with Relief Valve (150 PSIG) = 3
- Port with Relief Valve (XXX PSIG) (specify with order) = 4
VACUUM JACKET
- Full Jacket = 1
- No Jacket = 2
- Cold Box Jacket = 3
- Special = 4
OTHER FEATURES
- Flow Plug (EQ%) = A
- Flow Plug (Linear) = B
- Specify with Order = X
- Gas Trap = T
